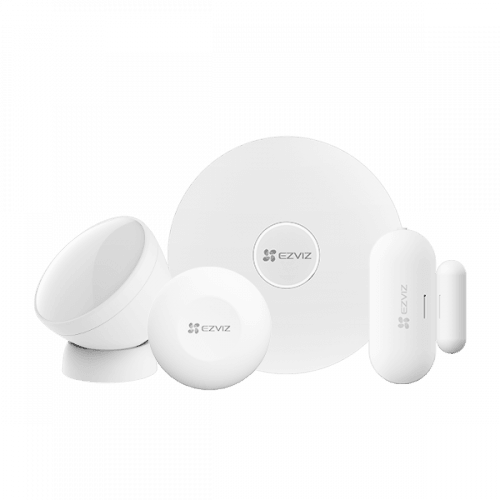

EZVIZ 4-Piece Home Sensor Kit A well-thought-out solution for a safer home

Roll over image to zoom in Click on image to zoom

EZVIZ 4-Piece Home Sensor Kit A well-thought-out solution for a safer home

Name: EZVIZ 4-Piece Home Sensor Kit A well-thought-out solution for a safer home
Brand: EzViz
Price: 99.000 JOD
Availability: InStock

EzViz

No reviews

Price:

99.000 JD

Stock:

In stock

Quantity:

Share this product

Energy-Saving Design with Long Battery Life¹
Compact and Cleverly Designed
Trusted security at your fingertips

HOME GETAWAY

Model	CS-A3-A0-W

General
Operation Conditions	-10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions	Φ 70.0 × 25.4 mm (Φ 2.75 × 1.00 inch)
Net Weight	71 g (2.5 oz)
Package Size	95.5 × 80.5 × 98.5 mm (3.8 × 3.2 x 3.9 inch)
Power Supply	Uses Micro USB, DC 5V / 1A
Power Consumption	Max.3W

Network
Communication Methods	RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0
Communication Distance	Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment)
Antenna	Built-in

PIR SENSOR

Model	CS-T1C-A0-BG

General
Operation Conditions	-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions	Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch)
Package Size	92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight	92 g (3.2 oz) with package

Detection
Detection Type	Passive infrared (PIR)
Detection Distance	Up to 7 m / 23 ft
Detection Angle	90° horizontal, 90° vertical
Recommended Installation Height	1.8 to 2.5 m for wall-mounted installation
Pet-Proof Detection	Requires using the pet shield and an installation height of 50 cm or higher above the pet

Function
Low Battery Reminder	Supports
Anti-Tamper Alarm	Supports
Installation Methods	Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation

Battery
Battery Type	Cell battery CR2450
Battery Life	High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years

Network
Protocol	ZigBee 3.0
Communication Distance	< 200 m (Tested in open environment)

OPEN/CLOSE SENSOR

Model	CS-T2C-A0-BG

General
Operation Conditions	-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions	Main body: 53.5 × 22.5 × 13.5 mm (2.1 × 0.9 × 0.5 inch) Magnet: 32.0 × 10.5 × 13.5 mm (1.2 × 0.4 × 0.5 inch)
Package Size	92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight	80 g (2.8 oz) with package

Detection
Detection Type	80 g (2.8 oz) with package
Recommended Trigger Distance	Wooden door > 25 mm Iron door > 15 mm

Function
Low Battery Reminder	Supports
Anti-Tamper Alarm	Supports
Installation Method	Adhesive back for peel-and-stick installation

Battery
Battery Type	Cell battery CR1632 × 2
Battery Life	Up to 2 years (Based on the usage of 30 detections per day)

Network
Protocol	ZigBee 3.0
Communication Distance	< 200 m (Tested in open environment)

SMART BUTTON

Model	CS-T3C-A0-BG

General
Operation Conditions	-10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions	Φ 40.6 × 12.3mm (Φ 1.6 × 0.5 inch)
Package Size	92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight	68 g (2.4 oz) with package

Control Methods
Single Click	< 2 s
Double Click	Interval time < 0.5 s
Long Press	≥ 2 s
Modes	Arm / Disarm Mode, Emergency Button Mode

Function
Low Battery Reminder	Supports
Anti-Tamper Alarm	Supports
Installation Method	Place anywhere; adhesive back for peel-and-stick installation

Battery
Battery Type	Cell battery CR2032
Battery Life	Up to 2 years (Based on the usage of 15 clicks per day)

Network
Protocol	ZigBee 3.0
Communication Distance	< 200 m (Tested in open environment)

IN THE BOX

 A3 Home Gateway

- Power Adapter for A3

- USB Cable for A3

- T1C PIR Sensor

- Pet Shield for T1C

- T2C Open/Close Sensor

- T3C Smart Button

- Doubled-sided Tape Strips (3)

- Regulatory Information

- Quick Start Guide
